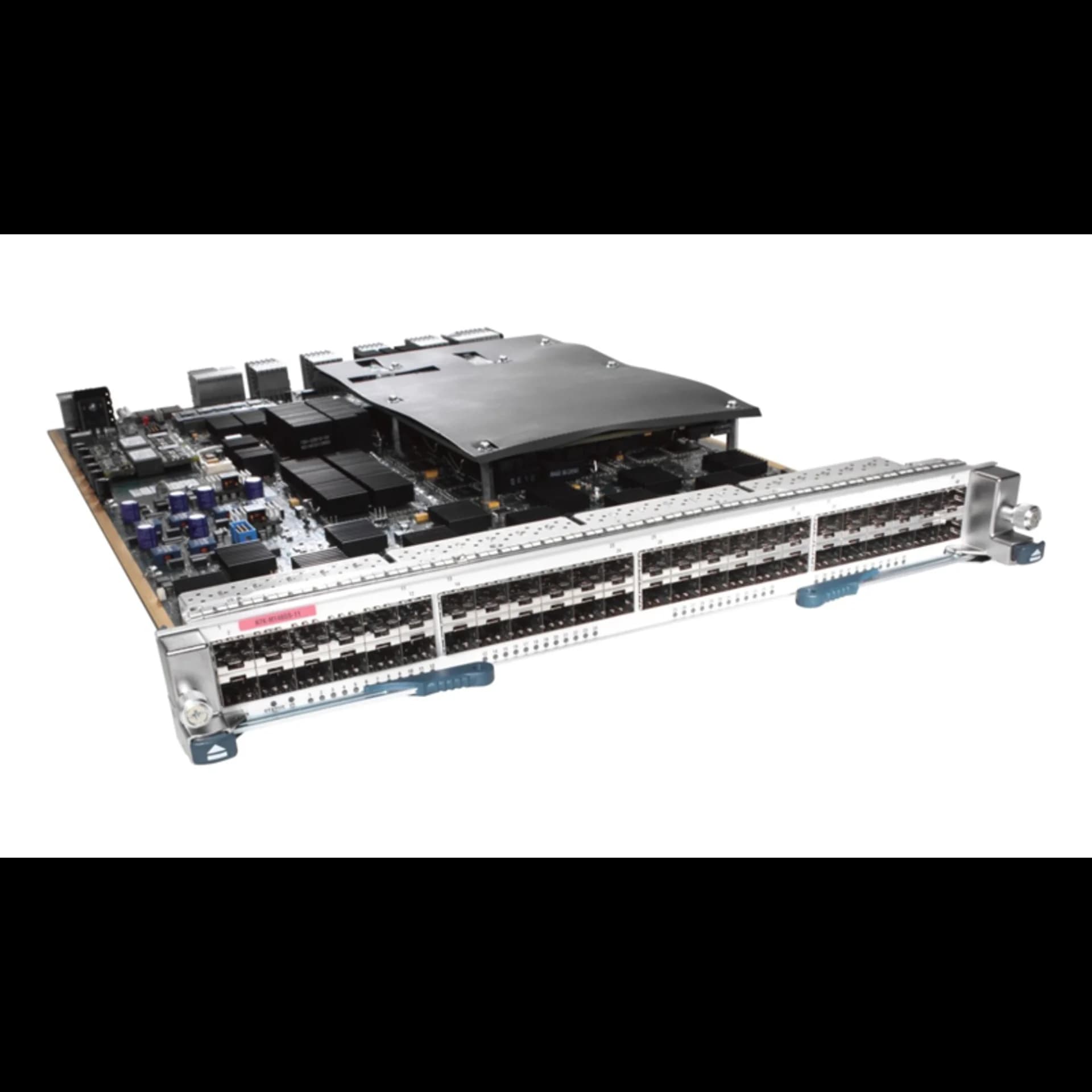

Модуль Cisco Nexus N7K-M148GS-11
2 650 ₽
Поставщик
Для физических лиц
Для юридических лиц
Ответим в течение 30 минут · Пн–Пт 09:00–19:00 МСК
Архитектура Cisco Nexus 7000 (ENG) Обзор Cisco Nexus 7000 (RUS) Развёртывание Cisco Nexus 7000 в сетях ЦОД (ENG) Устранение проблем с Nexus 7000 и NX-OS (ENG) …
Архитектура Cisco Nexus 7000 (ENG) Обзор Cisco Nexus 7000 (RUS) Развёртывание Cisco Nexus 7000 в сетях ЦОД (ENG) Устранение проблем с Nexus 7000 и NX-OS (ENG) Non-XL Mode XL Mode
MAC entries
128K
128K
IPv4 routes
128K
Up to 1M
IPv6 routes
64K
Up to 350K
NetFlow entries
512K
512K
ACL
64K
128K
Основные особенности:
48 портов 1000Base-X (SFP)
Load sharing на все модули в пределах матрицы
Distributed forwarding
MPLS
Аппаратная поддержка TrustSec
Поддержка горячей замены OIR
Техническая спецификация: Items Specifications
48-Port 10/100/1000 Ethernet Module (Copper)
48-Port 1 Gigabit Ethernet Module (Fiber)
Systems
Software compatibility
Cisco NX-OS Software Release 4.0 or later (minimum requirement)
Cisco NX-OS Software Release 4.1 or later (minimum requirement)
Product compatibility
• Supported in Cisco Nexus 7000 Series 9-, 10-, and 18-slot chassis
• Supported Fabric-1 or Fabric-2 fabric modules
• Supported SUP1, SUP2 or SUP2E Supervisor modules
Memory
1 GB DRAM
Front-panel LEDs
• Status: Green (operational), red (faulty), or orange (module booting)
• Link: Green (port enabled and connected), orange (port disabled), off (port enabled and not connected), or blinking green and orange in conjunction with ID LED blue (port flagged for identification; beacon)
• ID: Blue (operator has flagged this card for identification; beacon) or off (module not flagged)
Programming interfaces
• XML
• Scriptable command-line interface (CLI)
• Cisco Data Center Network Manager (DCNM) GUI
Network management
• Cisco DCNM 4.0
Reliability and availability
• OIR • OIR
Physical Interfaces
Connectivity
48 ports of 10/100/1000 Ethernet using RJ-45 connectors
48 ports of Gigabit Ethernet using SFP optics
Maximum port density
384 ports of 10/100/1000 Ethernet for 10-slot chassis and 768 ports of 10/100/1000 Ethernet for 18-slot chassis
384 ports of Gigabit Ethernet for 10-slot chassis and 768 ports of Gigabit Ethernet for 18-slot chassis
Time domain reflectometry
(TDR)
Helps find cable faults
-
MAC security
All 48 ports have built-in IEEE 802.1AE MAC security and an AES cipher with a 128-bit key (requires a software license to enable)
Queues per port
• Input: 2 queues and 4 thresholds (RX: 2q4t)
• Output: 1 strict priority queue, 3 Deficit-Weighted Round-Robin (DWRR) queues, and 4 thresholds (TX: 1p3q4t)
Scheduler
DWRR and Shaped Round-Robin (SRR)
Port buffers
Ingress: 7.56 MB per port
Egress: 6.15 MB per port
Jumbo frame support for bridged and routed packets
Up to 9216 bytes
Forwarding Engine: M Series
Performance
60 Mpps Layer 2 and 3 IPv4 unicast and 30 Mpps IPv6 unicast
MAC entries
128,000
Forwarding information
base (FIB) entries
128,000
NetFlow entries
512,000 shared (ingress plus egress)
VLANs
16,384 bridge domains and 4096 simultaneous VLANs per virtual device context (VDC)
ACLs 64,000
Policers
16,000
Fabric Interface
Switch fabric interface
46 Gbps in each direction (92 Gbps full duplex) distributed across up to five fabric modules
Online insertions and removal (OIR)
Online insertion and removal
Environmental
Physical dimensions
• Occupies one I/O module slot in a Cisco Nexus 7000 Series chassis
• Dimensions (H x W x D): 1.733 x 15.3 x 21.9 in. (4.4 x 38.9 x 55.6 cm)
• Weight: 14 lb (6.4 kg)
• Occupies one I/O module slot in a Cisco Nexus 7000 Series chassis
• Dimensions (H x W x D): 1.733 x 15.3 x 21.9 in. (4.4 x 38.9 x 55.6 cm)
• Weight: 15.5 lb (7.0 kg)
Power consumption
• Typical: 358 watts (W)
• Maximum: 400W
• Typical: 358W
• Maximum: 400W
Environmental conditions
• Operating temperature: 32 to 104°F (0 to 40°C)
• Operational relative humidity: 5 to 90%, noncondensing
• Storage temperature: -40F to 158°F (-40 to 70°C)
• Storage relative humidity: 5 to 95%, noncondensing
Regulatory compliance
• EMC compliance
• FCC Part 15 (CFR 47) (USA) Class A
• ICES-003 (Canada) Class A
• EN55022 (Europe) Class A
• CISPR22 (International) Class A
• AS/NZS CISPR22 (Australia and New Zealand) Class A
• VCCI (Japan) Class A
• KN22 (Korea) Class A
• CNS13438 (Taiwan) Class A
• CISPR24
• EN55024
• EN50082-1
• EN61000-3-2
• EN61000-3-3
• EN61000-6-1
• EN300 386
Environmental standards
• NEBS criteria levels
• SR-3580 NEBS Level 3 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4)
• Verizon NEBS compliance
• Telecommunications Carrier Group (TCG) Checklist
• Qwest NEBS requirements
• Telecommunications Carrier Group (TCG) Checklist
• ATT NEBS requirements
• ATT TP76200 level 3 and TCG Checklist
• ETSI
• ETSI 300 019-1-1, Class 1.2 Storage
• ETSI 300 019-1-2, Class 2.3 Transportation
• ETSI 300 019-1-3, Class 3.2 Stationary Use
Safety
• UL/CSA/IEC/EN 60950-1
• AS/NZS 60950
