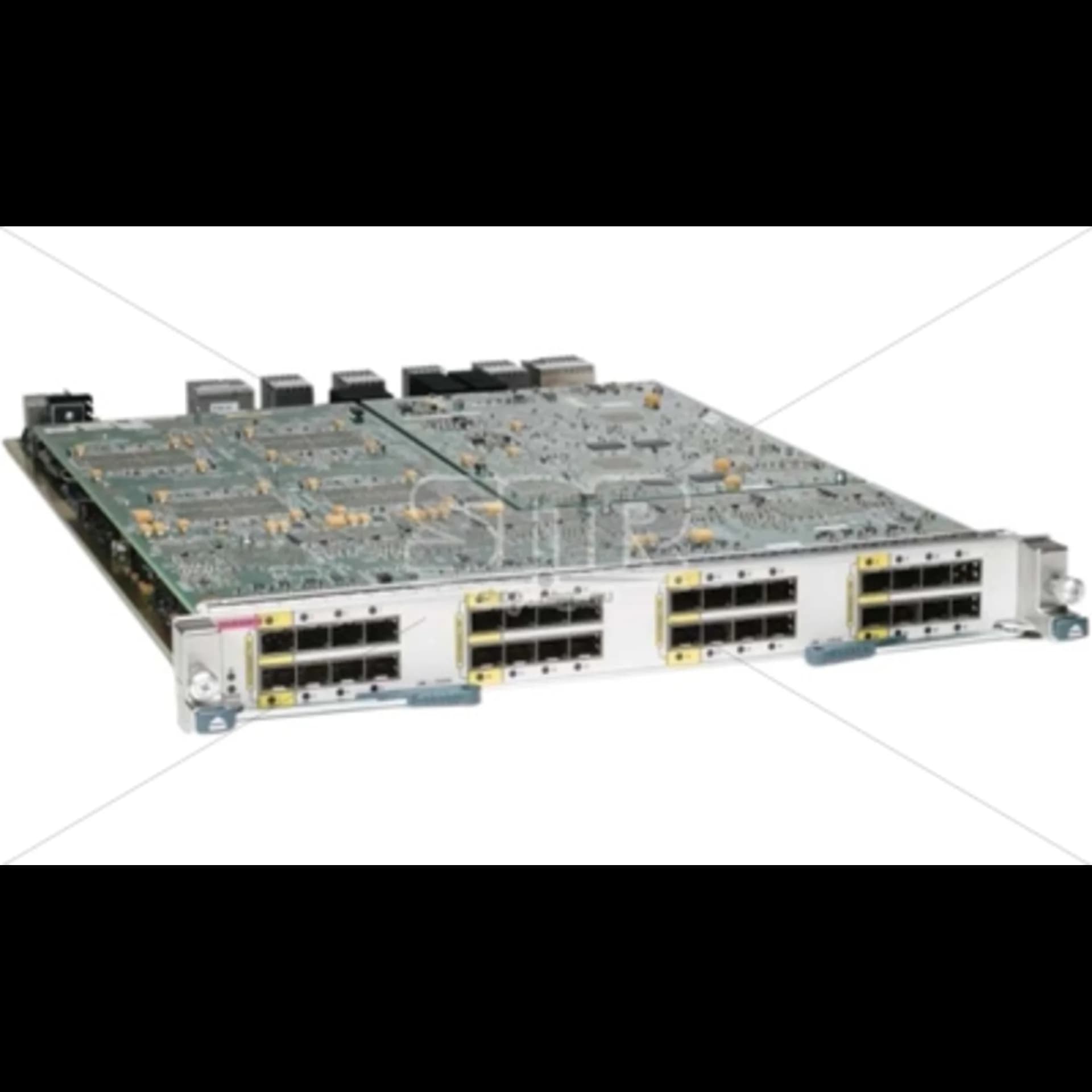

Модуль Cisco Nexus N7K-M132XP-12
50 420 ₽
Поставщик
Для физических лиц
Для юридических лиц
Ответим в течение 30 минут · Пн–Пт 09:00–19:00 МСК
Модуль M1 для Cisco Nexus 7000 Series, 32 порта 10GE (SFP+)
Архитектура Cisco Nexus 7000 (ENG) Обзор Cisco Nexus 7000 (RUS) Развёртывание Cisco Nexus 7000 в сетях ЦОД (ENG) Устранение проблем с Nexus 7000 и NX-OS (ENG) Non-XL Mode XL Mode
MAC entries
128K
128K
IPv4 routes
128K
Up to 1M
IPv6 routes
64K
Up to 350K
NetFlow entries
512K
512K
ACL
64K
128K
Основные особенности: 32 порта 10GE (SFP+) Load sharing на все модули в пределах матрицы Distributed forwarding MPLS Аппаратная поддержка TrustSec Поддержка горячей замены OIR
Техническая спецификация: Item Specifications
System
Product compatibility
• Supported in Cisco Nexus 7000 Series 9-, 10-, and 18-slot chassis
• Supported Fabric-1 or Fabric-2 fabric modules
• Supported SUP1, SUP2 or SUP2E Supervisor modules
Software compatibility
Cisco NX-OS Software Release 4.0 or later (minimum requirement)
Memory
1 GB DRAM
Front-panel LEDs
• Status: Green (operational), red (faulty), or orange (module booting)
• Link: Green (port enabled and connected), orange (port disabled), blinking orange (faulty port), off (port enabled and not connected), or blinking green and orange in conjunction with ID LED blue (port flagged for identification; beacon)
• ID: Blue (operator has flagged this card for identification; beacon) or off (module not flagged)
Programming interfaces
• XML
• Scriptable command-line interface (CLI)
• Cisco Data Center Network Manager (DCNM) GUI
Network management
• Cisco DCNM 4.0
Physical Interfaces
Connectivity
32 ports of 10 Gigabit Ethernet (SFP+ pluggable optics module)
Maximum port density
256 ports of 10 Gigabit Ethernet for 10-slot chassis
512 ports of 10 Gigabit Ethernet for 18-slot chassis
MAC security
All 32 ports have built-in IEEE 802.1AE MAC security and an AES cipher with a 128-bit key (requires a
Cisco Advanced LAN license to enable)
Queues per port
• Ingress: 8 queues and 2 thresholds (RX: 8q2t)
• Egress: 1 strict priority queue, 7 Deficit-Weighted Round-Robin (DWRR) queues, and 4 thresholds (TX: 1p7q4t)
Scheduler
DWRR and Shaped Round-Robin (SRR)
Port buffers
• 1 MB plus 65 MB per port on ingress and 80 MB per port on egress for dedicated mode operation
• 1 MB per port plus 65 MB shared per 4-port group on ingress and 80 MB per 4-port group on egress in shared mode
Jumbo frame support for bridged and routed packets
Up to 9216 bytes
Forwarding Engine: M1
Performance
60 Mpps Layer 2 and 3 IPv4 unicast and 30 Mpps IPv6 unicast
MAC entries
128K
Forwarding Information Base (FIB)
entries
128K
NetFlow entries
512,000 shared (ingress plus egress)
VLANs
16,384 bridge domains and 4096 simultaneous VLANs per VDC
ACLs
64,000
Policers
16K
Fabric Interface
Switch fabric interface
80 Gbps in each direction (160 Gbps full duplex) distributed across up to 5 fabric modules (80-Gbps throughput requires 2 or more fabric modules)
OIR
Online insertion and removal
Environmental
Physical dimensions
• Occupies one I/O module slot in a Cisco Nexus 7000 Series chassis
• Dimensions (H x W x D): 1.733 x 15.3 x 21.9 in. (4.4 x 38.9 x 55.6 cm)
• Weight: 18.5 lb with SFP+ and 17 lb without SFP+ modules
Power consumption
• Typical: 611 watts (W)
• Maximum: 750W
Environmental conditions
• Operating temperature: 32 to 104°F (0 to 40°C)
• Operational relative humidity: 5 to 90%, noncondensing
• Storage temperature: -40F to 158°F (-40 to 70°C)
• Storage relative humidity: 5 to 95%, noncondensing
Regulatory compliance
• EMC compliance
• FCC Part 15 (CFR 47) (USA) Class A
• ICES-003 (Canada) Class A
• EN55022 (Europe) Class A
• CISPR22 (International) Class A
• AS/NZS CISPR22 (Australia and New Zealand) Class A
• VCCI (Japan) Class A
• KN22 (Korea) Class A
• CNS13438 (Taiwan) Class A
• CISPR24
• EN55024
• EN50082-1
• EN61000-3-2
• EN61000-3-3
• EN61000-6-1
• EN300 386
Environmental standards
• NEBS criteria levels
• SR-3580 NEBS Level 3 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4)
• Verizon NEBS compliance
• Telecommunications Carrier Group (TCG) Checklist
• Qwest NEBS requirements
• Telecommunications Carrier Group (TCG) Checklist • ATT NEBS requirements
• ATT TP76200 level 3 and TCG Checklist
• ETSI
• ETSI 300 019-1-1, Class 1.2 Storage
• ETSI 300 019-1-2, Class 2.3 Transportation
• ETSI 300 019-1-3, Class 3.2 Stationary Use
Safety
• UL/CSA/IEC/EN 60950-1
• AS/NZS 60950
Архитектура Cisco Nexus 7000 (ENG) Обзор Cisco Nexus 7000 (RUS) Развёртывание Cisco Nexus 7000 в сетях ЦОД (ENG) Устранение проблем с Nexus 7000 и NX-OS (ENG) Non-XL Mode XL Mode
MAC entries
128K
128K
IPv4 routes
128K
Up to 1M
IPv6 routes
64K
Up to 350K
NetFlow entries
512K
512K
ACL
64K
128K
Основные особенности: 32 порта 10GE (SFP+) Load sharing на все модули в пределах матрицы Distributed forwarding MPLS Аппаратная поддержка TrustSec Поддержка горячей замены OIR
Техническая спецификация: Item Specifications
System
Product compatibility
• Supported in Cisco Nexus 7000 Series 9-, 10-, and 18-slot chassis
• Supported Fabric-1 or Fabric-2 fabric modules
• Supported SUP1, SUP2 or SUP2E Supervisor modules
Software compatibility
Cisco NX-OS Software Release 4.0 or later (minimum requirement)
Memory
1 GB DRAM
Front-panel LEDs
• Status: Green (operational), red (faulty), or orange (module booting)
• Link: Green (port enabled and connected), orange (port disabled), blinking orange (faulty port), off (port enabled and not connected), or blinking green and orange in conjunction with ID LED blue (port flagged for identification; beacon)
• ID: Blue (operator has flagged this card for identification; beacon) or off (module not flagged)
Programming interfaces
• XML
• Scriptable command-line interface (CLI)
• Cisco Data Center Network Manager (DCNM) GUI
Network management
• Cisco DCNM 4.0
Physical Interfaces
Connectivity
32 ports of 10 Gigabit Ethernet (SFP+ pluggable optics module)
Maximum port density
256 ports of 10 Gigabit Ethernet for 10-slot chassis
512 ports of 10 Gigabit Ethernet for 18-slot chassis
MAC security
All 32 ports have built-in IEEE 802.1AE MAC security and an AES cipher with a 128-bit key (requires a
Cisco Advanced LAN license to enable)
Queues per port
• Ingress: 8 queues and 2 thresholds (RX: 8q2t)
• Egress: 1 strict priority queue, 7 Deficit-Weighted Round-Robin (DWRR) queues, and 4 thresholds (TX: 1p7q4t)
Scheduler
DWRR and Shaped Round-Robin (SRR)
Port buffers
• 1 MB plus 65 MB per port on ingress and 80 MB per port on egress for dedicated mode operation
• 1 MB per port plus 65 MB shared per 4-port group on ingress and 80 MB per 4-port group on egress in shared mode
Jumbo frame support for bridged and routed packets
Up to 9216 bytes
Forwarding Engine: M1
Performance
60 Mpps Layer 2 and 3 IPv4 unicast and 30 Mpps IPv6 unicast
MAC entries
128K
Forwarding Information Base (FIB)
entries
128K
NetFlow entries
512,000 shared (ingress plus egress)
VLANs
16,384 bridge domains and 4096 simultaneous VLANs per VDC
ACLs
64,000
Policers
16K
Fabric Interface
Switch fabric interface
80 Gbps in each direction (160 Gbps full duplex) distributed across up to 5 fabric modules (80-Gbps throughput requires 2 or more fabric modules)
OIR
Online insertion and removal
Environmental
Physical dimensions
• Occupies one I/O module slot in a Cisco Nexus 7000 Series chassis
• Dimensions (H x W x D): 1.733 x 15.3 x 21.9 in. (4.4 x 38.9 x 55.6 cm)
• Weight: 18.5 lb with SFP+ and 17 lb without SFP+ modules
Power consumption
• Typical: 611 watts (W)
• Maximum: 750W
Environmental conditions
• Operating temperature: 32 to 104°F (0 to 40°C)
• Operational relative humidity: 5 to 90%, noncondensing
• Storage temperature: -40F to 158°F (-40 to 70°C)
• Storage relative humidity: 5 to 95%, noncondensing
Regulatory compliance
• EMC compliance
• FCC Part 15 (CFR 47) (USA) Class A
• ICES-003 (Canada) Class A
• EN55022 (Europe) Class A
• CISPR22 (International) Class A
• AS/NZS CISPR22 (Australia and New Zealand) Class A
• VCCI (Japan) Class A
• KN22 (Korea) Class A
• CNS13438 (Taiwan) Class A
• CISPR24
• EN55024
• EN50082-1
• EN61000-3-2
• EN61000-3-3
• EN61000-6-1
• EN300 386
Environmental standards
• NEBS criteria levels
• SR-3580 NEBS Level 3 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4)
• Verizon NEBS compliance
• Telecommunications Carrier Group (TCG) Checklist
• Qwest NEBS requirements
• Telecommunications Carrier Group (TCG) Checklist • ATT NEBS requirements
• ATT TP76200 level 3 and TCG Checklist
• ETSI
• ETSI 300 019-1-1, Class 1.2 Storage
• ETSI 300 019-1-2, Class 2.3 Transportation
• ETSI 300 019-1-3, Class 3.2 Stationary Use
Safety
• UL/CSA/IEC/EN 60950-1
• AS/NZS 60950
Модуль M1 для Cisco Nexus 7000 Series, 32 порта 10GE (SFP+)
